Dr. Odin ODN303 Piston Compressor Nebulizer

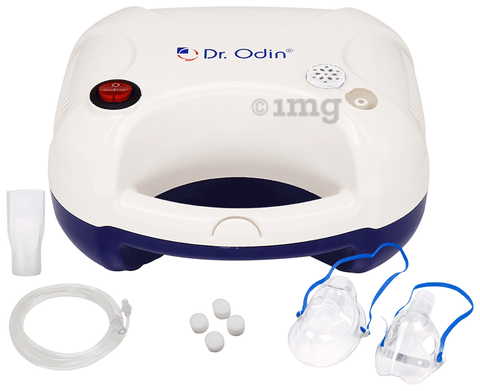

Dr. Odin ODN303 Piston Compressor Nebulizer is a medical device intended to convert prescribed liquid medication into aerosol mist for inhalation. This device can be used with mouthpieces or masks and is suitable for delivering medication directly into the lungs. The unit comes pre-assembled with essential accessories and offers quiet operation with adjustable pressure. It can be placed on a stable surface and activated by a simple switch. The compact body with a handle is useful for daily or travel use.

Uses:
This compressor nebulizer may assist with respiratory support for those managing breathing-related concerns. It delivers vaporized medication through a connected mask or mouthpiece for comfortable inhalation.

Net Quantity:
1 Unit

Product Specifications and Features:

• Operates with AC 230V, 50Hz power supply and uses 0.55A current.

• The medication container holds up to 6ml and supports particle sizes of 0.5 to 10μm.

• Noise level remains under 60 dB at a 1-meter distance.

• Maximum medication capacity is 13ml, but recommended level is 6ml.

• The average nebulization rate is greater than 0.2ml/minute.

• Compressor pressure range is between 30 to 36 psi (2.1 to 2.5 bar).

• Operating pressure range is 8 to 16 psi (0.5 to 1.0 bar).

• Flow rate ranges between 6 to 8 litres per minute.

• Suitable for operating temperatures between 10°C to 40°C.

• Storage temperature range: -20°C to 70°C.

• Operating humidity range: 10% to 90% RH.

• Storage humidity range: 10% to 95% RH.

• Product dimensions are 18 x 11.5 x 21 cms and weight is approximately 1.3 kg.

Directions for Use:

• Place the device on a stable and flat surface before operation.

• Unscrew the top cap of the nebulizer and fill it with prescribed liquid medication, not exceeding the 6ml line.

• Close the cap and connect the tubing to the compressor and nebulizer base.

• Attach the adult or child mask, or mouthpiece, to the top cap connector.

• Plug the power cord into an electrical outlet with a switch in the 'off' position.

• Switch on the power and begin inhalation.

• Turn off and unplug after use, and follow cleaning procedures as mentioned.

• Or use as instructed in the user manual.

Safety Information:

• Read the manual carefully before use.

• Always unplug the unit after use.

• Keep away from water and do not immerse the device in liquid.

• Never block the air openings while in use.

• Wipe daily using a soft damp cloth, avoid detergent or soap powders.

• Disinfect the nebulizer set after the last session of the day.

• Replace filters every 30 days or if they turn grey.

• Do not operate without a filter in place.

• Do not store the unit under direct sunlight.

• Keep the unit out of reach of small children.

Quick Tips:

• Use the device under the supervision of a healthcare provider.

• Clean the parts thoroughly after every use.
