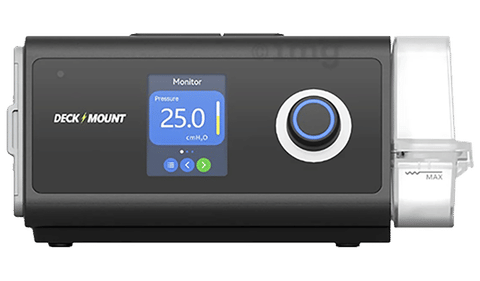

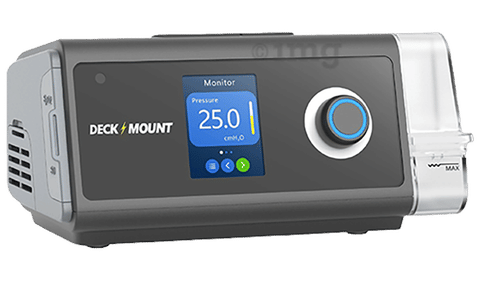

Deck Mount Respirare Bipap VT300 ST

Deck Mount Respirare Bipap VT300 ST is an advanced non-invasive ventilation device designed to deliver bi-level positive airway pressure with multiple therapy modes for personalised respiratory support. It provides separate pressure levels for inhalation and exhalation, along with spontaneous and timed (ST) modes that align with natural breathing patterns while offering backup breaths when required. The device is equipped with integrated humidification, intelligent comfort features, and safety alarms, making it suitable for both home and clinical use with a focus on consistent and comfortable therapy.

Uses:

• Provides bi-level positive airway pressure for respiratory support

• Supports breathing patterns during sleep as advised by a healthcare professional

• Helps maintain ventilation with backup breathing support

• Suitable for home and clinical respiratory therapy use

Product Specifications and Features:

• The device supports multiple therapy modes including CPAP, S, T, ST, APCV, VAF-ST, and VAF-APCV for flexible ventilation support

• It offers adjustable pressure settings with CPAP range 4–20 cmH₂O, IPAP up to 25 cmH₂O, and EPAP up to 23 cmH₂O

• Tidal volume can be adjusted approximately between 200–2000 ml based on therapy requirements

• Integrated heated humidifier provides controlled moisture to help reduce dryness during therapy

• Auto On/Off functionality enables automatic start and stop based on mask usage

• Advanced alarm system with sound and visual alerts notifies for issues such as power failure, low voltage, obstruction, and leaks

• Ramp and rise time settings allow gradual pressure adjustment for improved comfort

• The device operates at low noise levels (below 30 dBA), supporting uninterrupted use during sleep

• Data recording and management features allow tracking of therapy usage over different time periods

• Compact and lightweight design (approximately 1.3–1.4 kg) supports portability and ease of handling

• Supports supplemental oxygen up to 4 L/min in CPAP mode and higher in advanced modes

• The package typically includes device, full face mask, tubing, filters, power adaptor, and carry bag

Directions for Use:
Use only under medical supervision

Safety Information:

• Read the instructions manual carefully before use

• Store in a cool and dry place

• Keep the oxygen concentrator atleast 30cm away from the wall
